Clustering and Expression Patterns for the annotated AAC3 Gene and the Unannotated YDL246C Gene.



This page was produced as an assignment for an undergraduate course at Davidson College.







            Using the microarray-oriented site Expression Connection, I will investigate the same two genes as were investigated by other means in the previous assignment.  These genes are the ATP/ADP inner mitochondrial membrane co-transporter AAC3 gene, and the unannotated YDL246C gene (which previously showed homology with a mouse dehydrogenase gene.  Each of the microarrays shown below represents a different set of experimental conditions.  Many of the arrays show expression changes over time, however, the dependent variable in some is concentration of the experimental condition. There is a large amount of data shown below. To completely analyze all of it could take years, and possibly effect the addition of several letters to my name (PhD for instance). Thus, I will seek to understand the functions of each gene by either comparing it to the most similar expression pathways shown, or comparing it to another gene that is consistently expressed throughout a large number of the microarrays in a similar manner.





Scale : (fold repression/induction)








AAC3 Gene:



Expression at different alpha-factor concentrations  (Rosetta Inpharmatics).



Orf



Gene





Process



Function



Component

YBR085W



AAC3





ATP/ADP exchange



ATP/ADP antiporter



mitochondrial inner membrane

YIL009W



FAA3





not yet annotated



long-chain-fatty-acid-CoA-ligase



not yet annotated

YMR083W



ADH3





not yet annotated



acylglycerone-phosphate reductase



not yet annotated

YJL200C









not yet annotated



aconitate hydratase



not yet annotated

YBR072W



HSP26





stress response*



heat shock protein



nucleus*

YPL012W



RRP12





biological_process unknown



molecular_function unknown



not yet annotated

YPR062W



FCY1





not yet annotated



cytosine deaminase



not yet annotated

YJR148W



BAT2





not yet annotated



branched-chain amino acid aminotransferase



not yet annotated

YGR155W



CYS4





not yet annotated



cystathione beta-synthase



not yet annotated

YJL186W



MNN5





protein amino acid glycosylation



not yet annotated



not yet annotated

YJL111W



CCT7





protein folding*



chaperone



cytoplasm*



http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl

 The above experiment shows mild amounts of repression in the AAC3 gene at high doses of the alpha-factor phermone. The gene clusters with several genes that help to explain its function in this experiment. One of these genes is the FAA3 gene which codes for acyl-CoA synthase. Acyl-CoA synthase is an important protein in the activation of endogenous fatty acids. Both of these genes are important in anaerobic metabolism, one in the movement of ATP and ADP across the inner mitochondrial membrane under anaerobic conditions, and the other in the manipulation of fatty acids (which are an important energy source under anaerobic conditions) and, this clustering pattern makes sense.

http://genome-www.stanford.edu/cgi-bin/SGD/functionJunction?locus=FAA3



Expression in response to alpha-factor  (Rosetta Inpharmatics).



Orf



Gene





Process



Function



Component

YBR085W



AAC3





ATP/ADP exchange



ATP/ADP antiporter



mitochondrial inner membrane

YJL064W









biological_process unknown



molecular_function unknown



not yet annotated

YLR219W



MSC3





biological_process unknown



molecular_function unknown



not yet annotated

YBR033W









biological_process unknown



molecular_function unknown



not yet annotated

YDR436W



PPZ2





sodium ion homeostasis



protein serine/threonine phosphatase



cellular_component unknown

YOL131W









biological_process unknown



molecular_function unknown



not yet annotated

YHL012W









not yet annotated



UTP--glucose-1-phosphate uridylyltransferase



not yet annotated

YIR019C



MUC1





not yet annotated



glucan 1,4-alpha-glucosidase



not yet annotated

YGL176C









biological_process unknown



molecular_function unknown



not yet annotated

YJL127C



SPT10





chromatin modeling*



molecular_function unknown



nucleus

YFR019W



FAB1





vacuole organization and biogenesis



1-phosphatidylinositol-3-phosphate 5-kinase



vacuolar membrane

YPL278C









biological_process unknown



molecular_function unknown



not yet annotated

YKL184W



SPE1





not yet annotated



ornithine decarboxylase



not yet annotated

 In the above array, the AAC3 gene clusters with several other genes (MUC1 and YGL176C) that are involved in metabolism in the mitochondria. It also clusters with an unknown ORF called YBR033W that is located on the same chromosome (II). This could be due to an aneuploidy causing mutation that has caused part of chromosome II to be duplicated in the experimental strain yet not in the control strain.



  http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl

Expression during the cell cycle  (Stanford University).



Name

Score

Peak

AAC3

0.25



Reference Genes



CLN2

10.9

G1

HTA1

10.68

S

CLB4

3.08

G2

SWI5

6.726

M

ASH1

11.8

M/G1

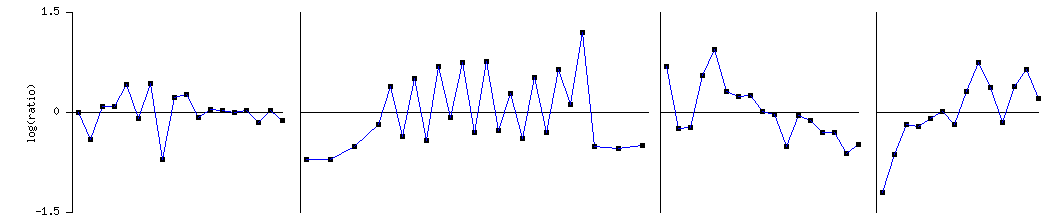

Plot of AAC3 (YBR085W)

http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl



No other genes have a high enough score to cluster with the AAC3 gene in the microarray above.  This may be because other genes that are expressed in a similar fashion have not yet been annotated, or because the data above does not represent expression ratios during the cell cycle under anaerobic conditions when the AAC3 gene is actually expressed.



Expression in response to histone depletion  (The Whitehead Institute).



Orf



Gene





Process



Function



Component

YBR085W



AAC3





ATP/ADP exchange



ATP/ADP antiporter



mitochondrial inner membrane

YJL130C



URA2





not yet annotated



aspartate carbamoyltransferase



not yet annotated

YDR315C



IPK1





not yet annotated



not yet annotated



not yet annotated

YPR201W



ARR3





not yet annotated



arsenite transporter



not yet annotated

YDR426C









biological_process unknown



molecular_function unknown



not yet annotated

YDR007W



TRP1





amino acid metabolism



phosphoribosylanthranilate isomerase



cytoplasm

YCL030C



HIS4





histidine biosynthesis



histidinol dehydrogenase*



cell

YHR109W



CTM1





protein modification



[cytochrome c]-lysine N-methyltransferase



cytosol

YIR017C



MET28





transcription regulation, from Pol II promoter*



specific RNA polymerase II transcription factor



nucleus

YMR247C









biological_process unknown



molecular_function unknown



not yet annotated

YFR054C









biological_process unknown



molecular_function unknown



not yet annotated

YBL034C



STU1





microtubule nucleation



structural protein of cytoskeleton



spindle pole body

YLR393W



ATP10





protein complex assembly



molecular_function unknown



mitochondrial membrane

YJR008W









biological_process unknown



molecular_function unknown



not yet annotated

YIL025C









biological_process unknown



molecular_function unknown



not yet annotated

YPR200C



ARR2





not yet annotated



molecular_function unknown



not yet annotated

  http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl

 In the above histone depletion microarray, the AAC3 gene can be seen to cluster with TRP1 and ARR3. The TRP1 gene is involved in amino acid metabolism. The ARR3 gene has a similar function to the AAC3 gene. It is a transporter that moves specific molecules across a membrane. Perhaps it also shares a similar promoter, thus explaining its similar expression profile.

Evolution of expression during glucose limitation  (Stanford University).

Name



Process



Function

AAC3



ATP/ADP exchange



ATP/ADP antiporter

RPC19



transcription, from Pol I promoter*



DNA-directed RNA polymerase III*

YFR041C



biological_process unknown



molecular_function unknown

PBI2



biological_process unknown



not yet annotated

YBR262C



biological_process unknown



molecular_function unknown

YNL193W



biological_process unknown



molecular_function unknown

ATX1



oxidative stress response



molecular_function unknown

CUP1-2



not yet annotated



not yet annotated

RFA2



nucleotide-excision repair*



DNA replication factor

PSD1



not yet annotated



phosphatidylserine decarboxylase

FOL1



not yet annotated



dihydropteroate synthase

YLR294C



biological_process unknown



molecular_function unknown

SDH4



tricarboxylic acid cycle*



succinate dehydrogenase

KES1



sterol metabolism



molecular_function unknown

HHT1



not yet annotated



not yet annotated

AAD4



biological_process unknown



molecular_function unknown

QCR6



not yet annotated



ubiquinol-cytochrome-c reductase

TOM22



mitochondrial translocation



protein transporter

IDP1



glutamate biosynthesis*



isocitrate dehydrogenase (NADP+)

HOM2



not yet annotated



aspartate-semialdehyde dehydrogenase

END3



cytokinesis*



cytoskeletal adaptor



























































http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl

This microarray shows AAC3 clustering with , among others, genes that are involved in the tricarboxylic acid cycle, mitochondrial translocation, and a cytochrome-c reductase (part of the electron transport chain.. All of these proteins would be expected to be located in the mitochondria. Perhaps the productivity of the mitochondria in the evolved strains was increased through a stronger promoter, or even selective aneuploidy of the gene. This would lead to the induction in so many different mitochondrial genes that is seen in the above data.



Conclusion:

The AAC3 gene shows a large amount of expression similarity with both other genes that may be expressed anaerobically and other mitochondrial genes. This upholds the annotations made with respect to its function and location, however the reason that it shares similarity with certain other genes is not always clear. For instance, the QCR6, cytochrome c gene is a part of the electron transport chain in oxidative phosphorylation, a process that requires oxygen. The AAC3 gene requires anaerobic conditions in order to be transcribed.



Expression during the diauxic shift  (Stanford University).



 The unannotated YDL246C ORF:





Orf



Gene





Process



Function



Component

YDL246C









biological_process unknown



molecular_function unknown



not yet annotated

YJR159W



SOR1





not yet annotated



L-iditol 2-dehydrogenase



not yet annotated

YJR108W



ABM1





not yet annotated



molecular_function unknown



not yet annotated

YER101C



AST2





not yet annotated



not yet annotated



not yet annotated

YKL110C



KTI12





not yet annotated



molecular_function unknown



not yet annotated







































http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl

As was shown in the previous webpage assignment, my ORF functions in a manner imilar to that of a dehydrogenase. In this particular microarray, the YDL246C ORF has clustered with a L-iditol 2-dehydrogenase.



Expression during sporulation  (Stanford University).



Orf



Gene





Process



Function



Component

YDL246C









biological_process unknown



molecular_function unknown



not yet annotated

YOR142W



LSC1





tricarboxylic acid cycle*



succinate--CoA ligase (ADP-forming)



mitochondrial matrix

YJR159W



SOR1





not yet annotated



L-iditol 2-dehydrogenase



not yet annotated

YBL051C



PIN4





biological_process unknown



molecular_function unknown



not yet annotated

YHL033C



RPL8A





protein biosynthesis



structural protein of ribosome



cytosolic large ribosomal (60S) subunit

YNL229C



URE2





nitrogen utilization regulation



transcription co-repressor



soluble fraction

YHR003C









biological_process unknown



molecular_function unknown



not yet annotated

YBR024W



SCO2





copper ion transport



molecular_function unknown



mitochondrial membrane











































http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl

Interestingly, here, the ORF has clustered close to the same L-iditol 2-dehydrogenase gene.

Expression in response to histone depletion  (The Whitehead Institute).



Orf



Gene





Process



Function



Component

YDL246C









biological_process unknown



molecular_function unknown



not yet annotated

YBR298C



MAL31





transport



maltose permease



not yet annotated

YDR518W



EUG1





not yet annotated



protein disulfide isomerase



not yet annotated

YNR065C









biological_process unknown



molecular_function unknown



not yet annotated

YCL020W



















YJR160C









biological_process unknown



molecular_function unknown



not yet annotated

YBL101W-A



















YPR047W



MSF1





protein biosynthesis



phenylalanine--tRNA ligase



mitochondrion

YPL110C









biological_process unknown



molecular_function unknown



not yet annotated

YIL159W



BNR1





osmotic response*



molecular_function unknown



cytokinetic ring (sensu Saccharomyces)

YDL139C



SCM3





not yet annotated



molecular_function unknown



not yet annotated

YJR159W



SOR1





not yet annotated



L-iditol 2-dehydrogenase



not yet annotated

YBL059W









biological_process unknown



molecular_function unknown



not yet annotated

YGR289C



MAL11





alpha-glucoside transport



general alpha-glucoside:hydrogen symporter



membrane fraction

YML042W



CAT2





amino acid metabolism*



carnitine O-acetyltransferase



mitochondrion*

YOR023C



AHC1





nucleosome disassembly



molecular_function unknown



Ada2/Gcn5/Ada3 transcription activator complex

YDR523C



SPS1





not yet annotated



not yet annotated



not yet annotated

YDR543C









biological_process unknown



molecular_function unknown



not yet annotated

YKR049C









biological_process unknown



molecular_function unknown



not yet annotated

YPL154C



PEP4





not yet annotated



saccharopepsin



not yet annotated

YMR096W



SNZ1





biological_process unknown



molecular_function unknown



not yet annotated

























 As the histones are depleted, and time passes, in this experiment, the YDL246C gene begins to be increasingly expressed. Yet again, the L-iditol 2-dehydrogenase genes shows up with a very similar expression pattern.



Expression in response to alpha-factor  (Rosetta Inpharmatics).





Orf



Gene





Process



Function



Component

YDL246C









biological_process unknown



molecular_function unknown



not yet annotated

YIL056W









biological_process unknown



molecular_function unknown



not yet annotated

YKL026C



GPX1





not yet annotated



glutathione peroxidase



not yet annotated

YPL020C



ULP1





G2/M transition of mitotic cell cycle



cysteine-type peptidase



nuclear membrane

YDR416W



SYF1





mRNA splicing*



molecular_function unknown



not yet annotated

YBL075C



SSA3





stress response*



heat shock protein



cytoplasm

YOR008C-A



KIM1





not yet annotated



molecular_function unknown



not yet annotated

YGL039W









biological_process unknown



molecular_function unknown



not yet annotated

YBR212W



NGR1





biological_process unknown



not yet annotated



not yet annotated

YOL019W



TOS7





biological_process unknown



molecular_function unknown



not yet annotated

YOR135C









biological_process unknown



molecular_function unknown



cellular_component unknown

YER168C



CCA1





protein synthesis elongation*



tRNA adenylyltransferase



nucleus*

YDL086W









not yet annotated



not yet annotated



not yet annotated

YJL149W









biological_process unknown



molecular_function unknown



not yet annotated

YAL058W



CNE1





not yet annotated



not yet annotated



not yet annotated

YGR156W



PTI1





biological_process unknown



molecular_function unknown



not yet annotated

YGL188C









biological_process unknown



molecular_function unknown



not yet annotated

  http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl





Conclusion:

Because this gene shows so much similarity to the L-iditol 2-dehydrogenase it is likely that they belong to a similar pathway. The L-iditol 2-dehydrogenase protein is a sorbitol induced sorbitol dehydrogenase. This pathway is probagbly the best place to start in order to illuminate the function of the YDL246C genes function.

http://genome-www.stanford.edu/cgi-bin/SGD/functionJunction?locus=FAA3

References:

SGD database. 2001. http://genome-www.stanford.edu/cgi-bin/SGD/functionJunction

SGD database. 2001. http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl


YPD database. 2001. Proteome, Inc. http://www.proteome.com/databases/YPD/reports/YJU3.html

Ben's Homepage

Genomics Homepage

Davidson Homepage

Biology Homepage

E-mail me with questions or comments!
