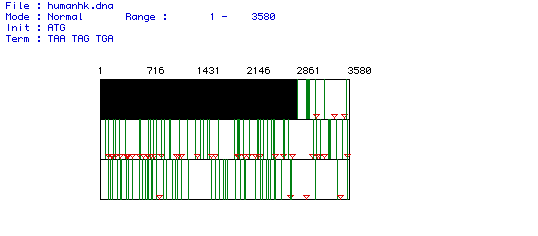

Open Reading Frame for Hexokinase
Molecular Weight 102497.74kD
Click here to see cDNA sequence for hexokinase
|
MacDNAsis of Hexokinase
|
|
This page was created as an assignment
for an undergraduate class at Davidson College
|
|
|
|
Open Reading Frame for Hexokinase Molecular Weight 102497.74kD Click here to see cDNA sequence for hexokinase |
 |
|

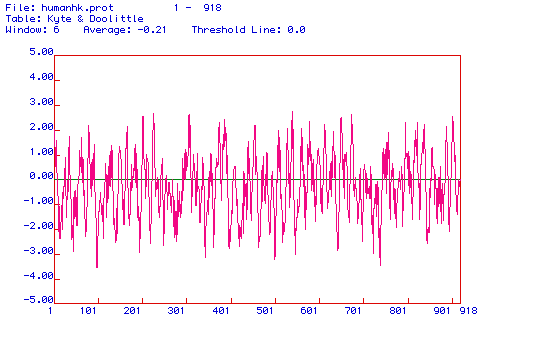

The plot indicates that the protein crosses the membrane
several times, making it an integral membrane protein.
|
 |
|
Anitgenicity plot. Linear sequences from 120 to 150, 250 to 290, and 620 to 650 might make the best peptide for generating a monoclonal antibody.They are the most hydrophilic. |
 |
|
Secondary structure of hexokinase
|
 |
|

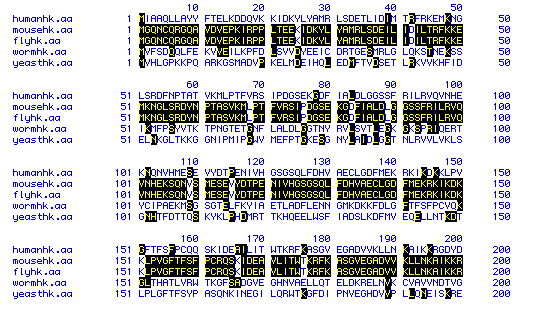

Multiple alignment of hexokinase sequences in five different species. Click on species name below to see protein sequence for each one. |
 |
|

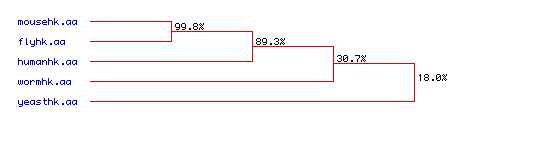

Phylogenic tree showing conservation of hexokinase across
species. Click on species name above to see protein sequence for each
one.
|
|
Click here to see results of Genbank
Search on hexokinase
|
 |
|
