MacDNAsis Results for

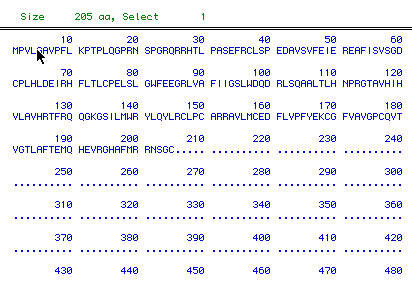

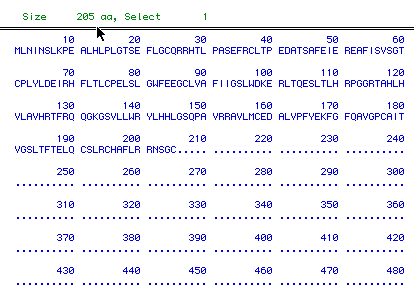

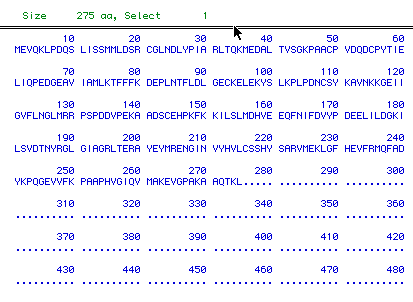

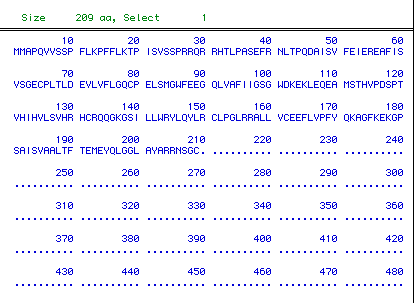

Amino Acid Sequences:

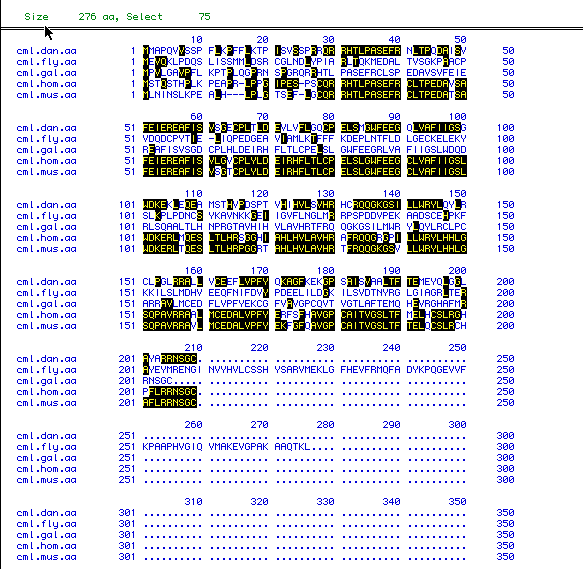

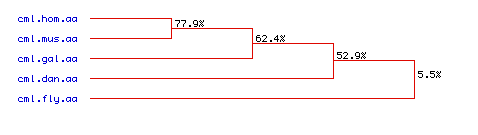

Multiple Sequence Alignment
of the above Amino Acid Sequences
Homo sapien cDNA results:

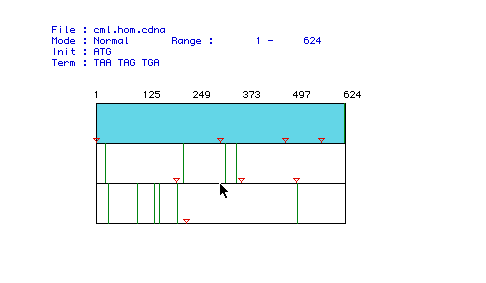

Homo sapien cDNA

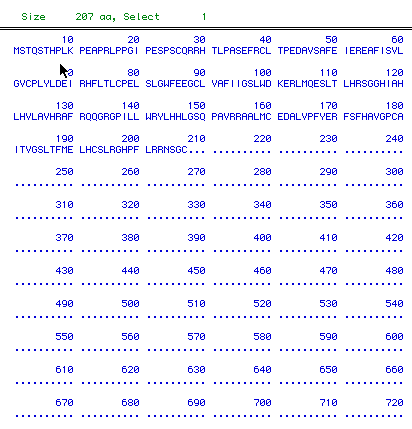

Amino Acid sequence as translated from cDNA
Predicted molecular weight

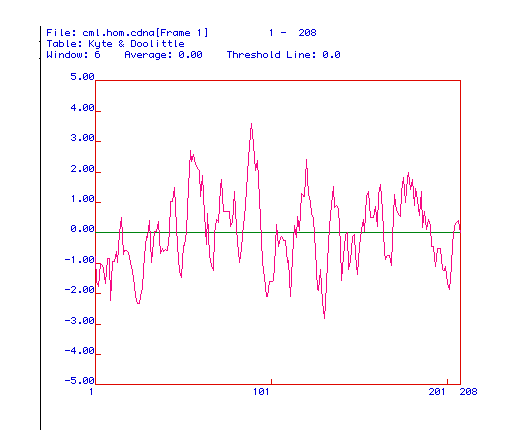

Hydropathy Plot - there are at least three domains that reach above the 2.oo on the hydropathy plot suggesting that this protien is an integral membrane protien.

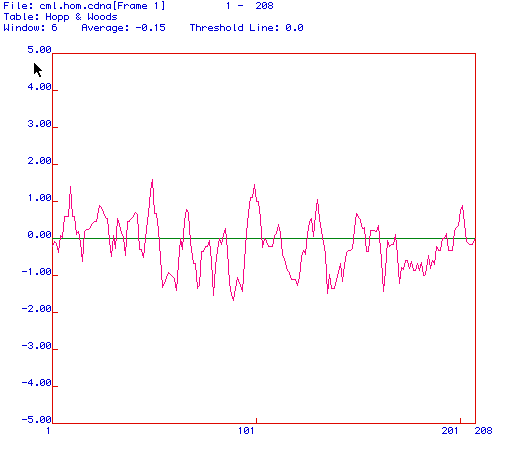

Antigenicity Plot - there are multiple portions of this protien that couls be used to generate a peptide if you wanted to make a monoclonal antibody against the peptide. The possibilities include aa 1-50 among others. Basically, any portion of the protien that appears above the green line on this plot would be a good possiblity. However, the highest peak, and therefore probably the best choice, occurs around aa position 40-50.
Predicted Secondary Structure
