This webpage was produced as an assignment for an undergraduate course at Davidson College.



EXPLORING GENE EXPRESSION OF MY FAVORITE YEAST ORFs, CDC28 and YBR161W, WITH DNA MIRCOARRAYS





CDC28.



       I saw previously that CDC28 is a cyclin-dependent kinase essential to the proliferation of Saccharomyces cerevisiae cells; this protein controls the essential process of yeast cells ‘deciding’ to replicate their DNA and enter mitosis.  I explored the expression patterns of CDC28 under different experimental conditions using the public database SGD Expression Connection (SGD, 2001; http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl).



I found microarray data for the following conditions:





While there was a great deal of information to be found in the database results, I decided to focus my analysis on the experiments that pertained to the function of my gene.



I.  Expression at Different Alpha-Factor Concentrations.



     Alpha-factor is a pheromone that arrests yeast’s cell cycle in the G1 phase and induces genes necessary for mating (Zymo Research, 2001; http://www.zymor.com/y1001-frame.html).  In the life cycle of yeast, cells alternately undergo sexual and asexual reproduction; i.e., they alternate beteween meiosis and mitosis depending on environmental factors and subsequent gene expression.

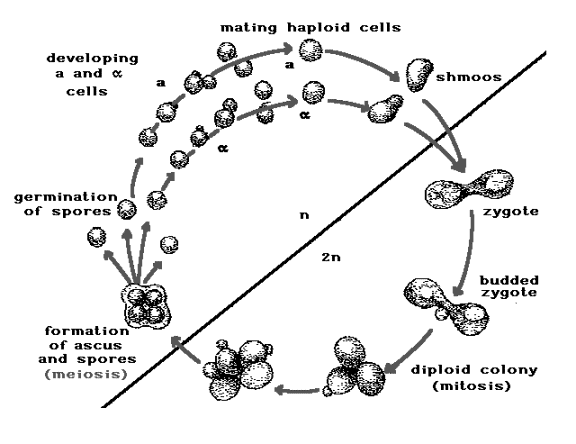

Figure 1. The life cycle of yeast.  Yeast cells alternate between budding and mating, as well as mitosis and meiosis.  (With permission from Tom Manney, http://www.phys.ksu.edu/gene/Mating4.html).



If CDC28 is indeed responsible for controlling mitosis in budding yeast, it makes sense that this protein would be repressed as higher concentrations of  alpha pheromone trigger cells to arrest G1 phase and any subsequent mitotic division, and undergo meiosis.  The DNA microarray data supports this:



Scale : (fold repression/induction)

Click on a color strip to see data for that gene.

Up to 20 similar genes are shown, with a Pearson correlation of > 0.8 to the query gene

Orf



Gene





Process



Function



Component

YBR160W



CDC28





protein amino acid phosphorylation*



cyclin-dependent protein kinase



cytoplasm

YOR372C



NDD1





not yet annotated



molecular_function unknown



not yet annotated

YMR120C



ADE17





`de novo` IMP biosynthesis



IMP cyclohydrolase*



cytosol

YPL255W



BBP1





microtubule nucleation



structural protein of cytoskeleton



spindle pole body

YBR037C



SCO1







protein complex assembly*



molecular_function unknown



mitochondrial inner membrane

YOR373W



NUD1







microtubule nucleation



structural protein of cytoskeleton



spindle pole body

YNL030W



HHF2





not yet annotated



not yet annotated



nucleosome

YBL002W



HTB2







not yet annotated



not yet annotated



nucleosome

YBR010W



HHT1





not yet annotated



not yet annotated



nucleosome

YJL092W



HPR5





DNA repair



DNA helicase



nucleus

YGR140W



CBF2





mitosis



not yet annotated



not yet annotated

YKR037C



SPC34





microtubule nucleation



structural protein of cytoskeleton



spindle pole body

YLR233C



EST1







not yet annotated



not yet annotated



not yet annotated

YNR009W









biological_process unknown



molecular_function unknown



not yet annotated

YMR307W



GAS1







biological_process unknown



not yet annotated



not yet annotated

YBL003C



HTA2





not yet annotated



not yet annotated



nucleosome

YDR225W



HTA1





not yet annotated



not yet annotated



nucleosome

YBR009C



HHF1







not yet annotated



not yet annotated



nucleosome

YDR224C



HTB1





chromatin assembly/disassembly



DNA binding



nucleosome

YNL031C



HHT2







not yet annotated



not yet annotated



nucleosome

YLL002W



REM50





not yet annotated



molecular_function unknown



not yet annotated


* : indicates that more than one annotation exists for the gene.



Figure 2. Clustered data for expression at different alpha-factor concentrations. (SGD, 2001).

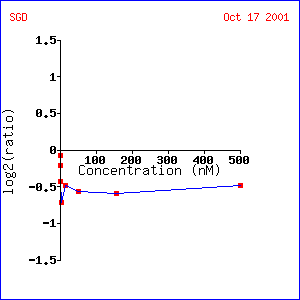

Figure 3.  Expression changes in CDC28 at different alpha-factor concentrations.  CDC28 is repressed to a nearly constant value relative to the control (SGD, 2001).



          While CDC28 does not follow a linear pattern, it is repressed at different alpha-factor concentrations.  It is clustered with other genes that are highly repressed as alpha-factor concentration increases.  Many of these genes are non-annotated, but a few are structural proteins in the cytoskeleton.  This makes intuitive sense in that as the cells arrest mitosis and begin sexual reproduction, they do not need to form new cytoskeletons, and these structural genes should be repressed.  Interestingly, while CDC28 is a cytoplasmic protein, many of the genes that are co-regulated with it reside in various locations within the cell, such as the mitochondrial inner membrane and the nucleosome.  CDC28 is repressed to a nearly constant value and does not change with increasing concentrations of alpha-factor; once the signal is turned off, it stays off and does not fluctuate with increasing signal.



II.                Expression in Response to Alpha-Factor.



In this experimental condition, CDC28 is exposed to alpha-factor and its response is monitored over time.



Scale : (fold repression/induction)

Click on a color strip to see data for that gene.

Up to 20 similar genes are shown, with a Pearson correlation of > 0.8 to the query gene

Orf



Gene





Process



Function



Component

YBR160W



CDC28





protein amino acid phosphorylation*



cyclin-dependent protein kinase



cytoplasm

YER177W



BMH1





pseudohyphal growth*



not yet annotated



not yet annotated

YLR463C









biological_process unknown



molecular_function unknown



not yet annotated

YBR090C









biological_process unknown



molecular_function unknown



not yet annotated

YFL068W











biological_process unknown



molecular_function unknown



not yet annotated

YHR219W











biological_process unknown



molecular_function unknown



not yet annotated

YHR102W



KIC1





not yet annotated



not yet annotated



not yet annotated

YDR545W



YRF1-1





biological_process unknown



not yet annotated



not yet annotated

YAR002AC



















YBR112C



CYC8





transcription



not yet annotated



not yet annotated

YPL230W



USV1





biological_process unknown



molecular_function unknown



not yet annotated

YLR467W



YRF1-5





biological_process unknown



not yet annotated



not yet annotated

YCR093W



CDC39







cell cycle control*



molecular_function unknown



nucleus

YPR153W









biological_process unknown



molecular_function unknown



not yet annotated

YER189W











biological_process unknown



molecular_function unknown



not yet annotated

YCR050C









not yet annotated



molecular_function unknown



not yet annotated

YNL014W



HEF3





biological_process unknown



molecular_function unknown



not yet annotated

YLR245C



CDD1





cytidine catabolism*



cytidine deaminase



cellular_component unknown

YLR437C









biological_process unknown



molecular_function unknown



not yet annotated

YBR177C



EHT1





lipid metabolism



molecular_function unknown



lipid particle

YJL019W









biological_process unknown



molecular_function unknown



not yet annotated


* : indicates that more than one annotation exists for the gene.




Figure 4.  Clustered data for CDC28 expression when exposed to alpha-factor over time (SGD, 2001).

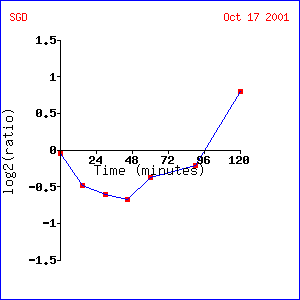

Figure 5.  CDC28 expression changes when exposed to alpha-factor over time (SGD, 2001).



          The microarray data indicate that initially, CDC28 is repressed and then at the end of the time points taken, it is induced.  The genes CDC28 are clustered with exhibit similar expression profiles.  Most of these genes have unknown functions and are not yet annotated.  The genes that are annotated, however, play roles in essential cell cycling functions such as transcription and lipid metabolism.  These expression changes may be indicative of the trend that when initially exposed to alpha-factor, CDC28 is repressed for reasons explained above.  As time passes however, the cell may have completed meiosis and is ready to enter the cell cycle of mitosis and interphase again, and consequently CDC28 is induced.





III.             Expression During the Cell Cycle.



This experiment attempted to catalog the different genes associated with the cell cycle.  The authors analyzed yeast cells under three different conditions: alpha-factor arrest, elutriation, and arrest of a CDC15 temperature-sensitive mutant.  They found 800 genes with significantly altered transcription levels over the course of the cell cycle.  More than half of these 800 genes responded to one or both of two important cyclins, CLN3 and CLB2, which are known to interact with CDC28 (Spellman et al., 1998; http://www.molbiolcell.org/cgi/content/full/9/12/3273).

          The authors picked reference genes representative of each of the phases of the cell cycle: G1, S, G2 and mitosis.  These genes show a diagonal clustering; that is, they alternate with each other through each phase of the cell cycle, so the red and green stripes are diagonals leaning to the right across the page:



Name

Score

Peak

CDC28

0.66



Reference Genes



CLN2

10.9

G1

HTA1

10.68

S

CLB4

3.08

G2

SWI5

6.726

M

ASH1

11.8

M/G1









Plot of CDC28 (YBR160W)

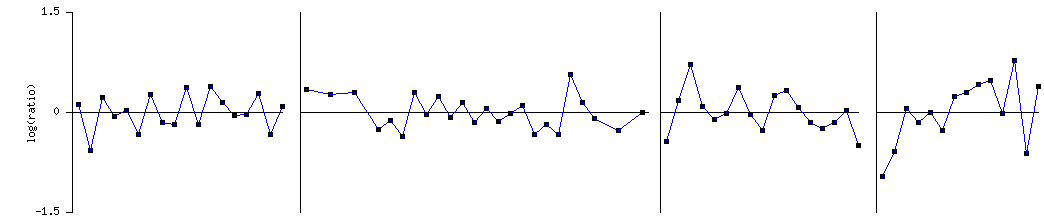

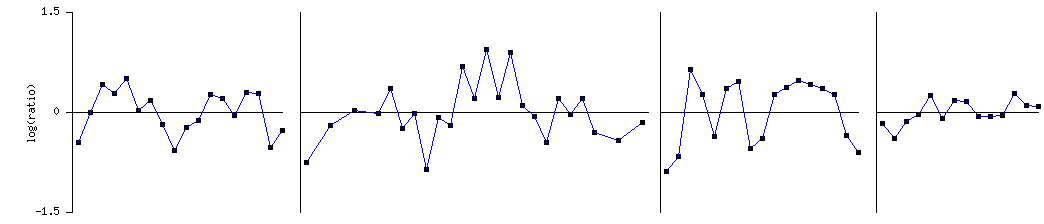

Figure 6. Comparison of CDC28 expression to that of reference genes from each phase of the cell cycle.  Peaks and valleys in the graph indicate individual cycles of the cell (SGD, 2001).



          By reading across each row and comparing how each of the reference genes is expressed with how CDC28 is expressed, CDC28 expresses similarly to CLN2 and HTA1; these genes are co-regulated so they each induce and repress at the same time.  CDC28 is expressed inversely to ASH1; when CDC28 is induced, ASH1 is repressed and vice versa.  CLB4 and SWI5 don’t seem to co-regulate with CDC28; the colors were too close to black, i.e. with ratios too close to 1, to make out appreciable differences.

These statements are approximations; CDC28 was not largely induced or repressed for any of these experimental conditions.  This may be due to the fact that since CDC28 is such an important protein in the signaling process of cell cycling, only slight changes in its induction and repression cause significant changes in many other proteins in a complex cascade.  Hence, it is not necessary for CDC28 to be largely induced or repressed when so many other proteins depend on it for activation and deactivation.



IV. Expression During Sporulation.

          This experiment measured gene expression during sporulation.  Given that yeast produce spores by undergoing meiotic division, we would expect the data to be similar to that of II above.



Scale : (fold repression/induction)

Click on a color strip to see data for that gene.

Up to 20 similar genes are shown, with a Pearson correlation of > 0.8 to the query gene

Orf



Gene





Process



Function



Component

YBR160W



CDC28





protein amino acid phosphorylation*



cyclin-dependent protein kinase



cytoplasm

YOR340C



RPA43





transcription, from Pol I promoter



DNA-directed RNA polymerase I



DNA-directed RNA polymerase I

YJL094C



KHA1





biological_process unknown



molecular_function unknown



not yet annotated

YKL158W



APE2





peptide metabolism



leucyl aminopeptidase



cytoplasm*

YML116W



ATR1





not yet annotated



not yet annotated



not yet annotated

YDR485C









biological_process unknown



molecular_function unknown



not yet annotated

YDL201W









biological_process unknown



molecular_function unknown



not yet annotated

YDR064W



RPS13





protein biosynthesis



structural protein of ribosome



cytosolic small ribosomal (40S) subunit

YML117W









biological_process unknown



molecular_function unknown



not yet annotated

YLR062C



BUD28





biological_process unknown



molecular_function unknown



cellular_component unknown

YMR157C









biological_process unknown



molecular_function unknown



not yet annotated

YMR121C



RPL15B





protein biosynthesis



structural protein of ribosome*



cytosolic large ribosomal (60S) subunit

YBR182C



SMP1





not yet annotated



not yet annotated



not yet annotated

YLR061W



RPL22A





protein biosynthesis



structural protein of ribosome



cytosolic large ribosomal (60S) subunit

YDL031W



DBP10





35S primary transcript processing*



ATP dependent RNA helicase



nucleolus

YLR342W



FKS1





cell wall organization and biogenesis*



1,3-beta-glucan synthase



actin cap (sensu Saccharomyces)*

YDL061C



RPS29B





protein biosynthesis



structural protein of ribosome



cytosolic small ribosomal (40S) subunit

YJL096W



MRPL49





protein biosynthesis



structural protein of ribosome



mitochondrial large ribosomal subunit

YOR147W









biological_process unknown



molecular_function unknown



not yet annotated

YPL044C











biological_process unknown



molecular_function unknown



not yet annotated

YIL079C









biological_process unknown



molecular_function unknown



not yet annotated


* : indicates that more than one annotation exists for the gene.



Figure 7.  Microarray data for sporulation over time.  Notice similarities to data from exposure to alpha-factor over time above.

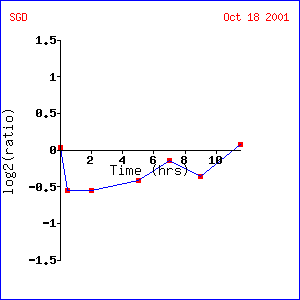

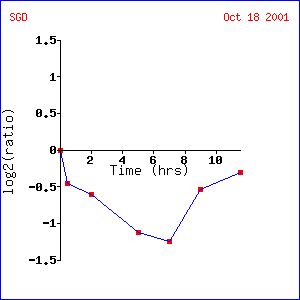

Figure 8. Response of CDC28 to sporulation over time.  Note similarity to Figure 5 (SGD, 2001).



          This experiment was similar to a previous experiment monitoring gene response to alpha-factor over time in that above, alpha-factor was signaling cells to mate, where here, sporulation entails the yeast cells forming spores necessary for mating.  While CDC28 is regulated similarly as seen in Figure 8, it was interesting to find how many more annotated genes clustered with CDC28 in Figure 7.  Many of these genes are involved with such processes as RNA transcription, peptide metabolism and biosynthesis, as well as cell wall biogenesis.  It appears that many more proteins are worked out in this signaling pathway relative to previous ones.



Conclusions.

          For many of the non-annotated genes, because they exhibit similar expression profiles, they may have similar functions to CDC28.  While many were more intensely induced or repressed than my gene, this is expected given that a cell should have very few critical proteins for complex signaling like CDC28.





YBR161W.



       Previously, I found that YBR161W is an ORF located in close proximity to CDC28 on chromosome II.  Based on sequence similarity, it may be a functional homolog to the yeast gene Sur1, which has been found to play a key role in cell wall formation.



          Again, I searched SGD’s Expression Connection Database, and yielded a great deal of information on the expression profiles of my non-annotated gene.  I focused my analysis on the experiments that gave the most insight into potential functions and processes associated with YBR161W.



I.                   Expression at Different Alpha-Factor Concentrations.



Scale : (fold repression/induction)

Click on a color strip to see data for that gene.

Up to 20 similar genes are shown, with a Pearson correlation of > 0.8 to the query gene

Orf



Gene





Process



Function



Component

YBR161W









biological_process unknown



molecular_function unknown



not yet annotated

YHR110W



ERP5





not yet annotated



molecular_function unknown



not yet annotated

YLR376C









biological_process unknown



molecular_function unknown



not yet annotated

YKL066W









biological_process unknown



molecular_function unknown



not yet annotated

YDL157C









biological_process unknown



molecular_function unknown



not yet annotated

YJL181W









biological_process unknown



molecular_function unknown



not yet annotated

YGL224C



SDT1





biological_process unknown



molecular_function unknown



not yet annotated

YFR041C









biological_process unknown



molecular_function unknown



not yet annotated

YKL165C



MCD4





not yet annotated



not yet annotated



not yet annotated

YML101C









biological_process unknown



molecular_function unknown



not yet annotated

YAL044C



GCV3





glycine metabolism



not yet annotated



not yet annotated

YBL031W



SHE1





biological_process unknown



not yet annotated



not yet annotated

YGR109C



CLB6





G1/S transition of mitotic cell cycle*



cyclin



cellular_component unknown

YDR133C









biological_process unknown



molecular_function unknown



not yet annotated

YLR050C









biological_process unknown



molecular_function unknown



not yet annotated

YBR098W



MMS4





DNA repair



transcription co-activator



nucleus

YAR007C



RFA1





nucleotide-excision repair*



RNA binding*



DNA replication factor A complex

YFR027W



ECO1





not yet annotated



molecular_function unknown



not yet annotated

YOL090W



MSH2





DNA repair



not yet annotated



not yet annotated

YER149C



PEA2





establishment of cell polarity (sensu Saccharomyces)*



cytoskeletal regulatory protein binding



actin cap (sensu Saccharomyces)*

YMR301C



ATM1





iron homeostasis



ATP-binding cassette (ABC) transporter



mitochondrial inner membrane


* : indicates that more than one annotation exists for the gene.



Figure 9.  Clustering data for YBR161W when exposed to increasing concentrations of alpha-factor (SGD, 2001).

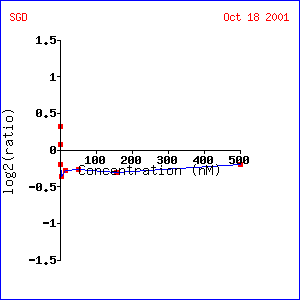

Figure 10.  Response of YBR161W to increasing alpha-factor concentrations (SGD, 2001).



     Interestingly, YBR161W is regulated similarly to CDC28 under this experimental condition.  Also of note, YBR161W clustered with one of the 9 essential cyclins, CLB6, that CDC28 is known to activate and deactivate.  CLB6 is one of the key genes responsible for signaling the end of G1 and the beginning of S phase.  If YBR161W is also involved in the cell’s ‘decision’ to undergo DNA replication, it makes sense that these other genes involved in DNA repair and establishment of cell polarity should be clustered here as well.



II.                Expression in Response to Alpha-Factor.



Scale : (fold repression/induction)

Click on a color strip to see data for that gene.

Up to 20 similar genes are shown, with a Pearson correlation of > 0.8 to the query gene

Orf



Gene





Process



Function



Component

YBR161W









biological_process unknown



molecular_function unknown



not yet annotated

YDR518W



EUG1





not yet annotated



protein disulfide isomerase



not yet annotated

YFR042W









biological_process unknown



molecular_function unknown



not yet annotated

YMR025W









biological_process unknown



molecular_function unknown



not yet annotated

YPR204W









biological_process unknown



DNA helicase



cellular_component unknown

YKR068C



BET3





not yet annotated



not yet annotated



not yet annotated

YDR189W



SLY1





not yet annotated



not yet annotated



not yet annotated

YIL026C



IRR1





mitotic sister chromatid cohesion*



molecular_function unknown



cohesin

YHR007C



ERG11





ergosterol biosynthesis



lanosterol 14-alpha-demethylase



endoplasmic reticulum

YGL009C



LEU1





not yet annotated



3-isopropylmalate dehydratase



not yet annotated

YOL003C









biological_process unknown



molecular_function unknown



not yet annotated

YOR304W



ISW2





biological_process unknown



molecular_function unknown



not yet annotated

YML012W



ERV25





not yet annotated



not yet annotated



not yet annotated

YDR105C









biological_process unknown



molecular_function unknown



not yet annotated

YMR047C



NUP116





mRNA-nucleus export*



structural protein



nuclear pore

YNR016C



ACC1







fatty acid biosynthesis*



acetyl-CoA carboxylase*



cytosol*

YAR003W



SWD1







biological_process unknown



molecular_function unknown



not yet annotated

YER026C



CHO1





phosphatidylserine biosynthesis



CDP-diacylglycerol-serine O-phosphatidyltransferase



endoplasmic reticulum

YDL102W



CDC2





nucleotide-excision repair*



delta DNA polymerase



delta DNA polymerase

YOR110W



TFC7





transcription initiation, from Pol III promoter



RNA polymerase III transcription factor



transcription factor TFIIIC

YPR202W









biological_process unknown



molecular_function unknown



cellular_component unknown


* : indicates that more than one annotation exists for the gene.



Figure 11.  Clustering data for YBR161W when exposed to alpha-factor over time (SGD, 2001).





Figure 12.  Response of YBR161W to alpha-factor over time (SGD, 2001).



     Interestingly, here my favorite non-annotated gene is clustering with other genes involved in DNA replication, but intead of repair functions, these genes are involved in a variety of functions such as cohesion of sister chromatids, ergosterol biosynthesis, mRNA-nucleus export, fatty acid biosynthesis, transcription initiation, as well as one gene involved in necleotide-excision repair.  This is not the same gene involved in nucleotide-excision repair from above; that gene was involved in RNA binding, where this gene is a DNA polymerase. There don’t appear to be significant correlations between these 2 experiments except to say that YBR161W has something to do with DNA replication.



III.             Expression During the Cell Cycle.



Name

Score

Peak

YBR161W

1.851

G1

Reference Genes



CLN2

10.9

G1

HTA1

10.68

S

CLB4

3.08

G2

SWI5

6.726

M

ASH1

11.8

M/G1









Plot of YBR161W



Figure 13.  Comparison of YBR161W to reference genes from each phase of the cell cycle.  Peaks and valleys of the graph indicate a full cycle for the cell.



     Interestingly, the reference genes follow a diagonal pattern as before, indicating induction and repression as the cell cycles through the 4 phases of G1, DNA replication, G2 and mitosis.  Readingly across as above, it appears that YBR161W is co-regulated with CLN2 and HTA1.  There is too much black in the strip for YBR161W to determine which of these 2 genes, and hence which phase, it is more closely imitating.  YBR161W co-regulates with CLB4 in some of the mutant conditions but not all.  YBR161W is oppositely regulated with SWI5 and ASH1;  that is, when SWI5 and ASH1 are induced, YBR161W is repressed and vice versa, though these correlations are not precise across each row.

     As before, these generalizations are approximate; YBR161W was not strongly induced or repressed for many of the time points or mutants, therefore, strict correlations are difficult to extract.



IV.             Expression During the Diauxic Shift.

This experiment measured gene expression responses to changes in available glucose.  We saw in class that when yeast cells were placed under this environmental stress, they responded by consuming as much glucose as possible and reproducing as quickly as possible to safeguard against possible starvation.



Scale : (fold repression/induction)

Click on a color strip to see data for that gene.

Up to 20 similar genes are shown, with a Pearson correlation of > 0.8 to the query gene

Orf



Gene





Process



Function



Component

YBR161W









biological_process unknown



molecular_function unknown



not yet annotated

YKL131W









biological_process unknown



molecular_function unknown



not yet annotated

YPL209C



IPL1





not yet annotated



protein kinase



not yet annotated

YBL074C



AAR2





mRNA splicing



molecular_function unknown



cellular_component unknown

YGL133W



ITC1





biological_process unknown



molecular_function unknown



nucleus

YDR480W



DIG2





invasive growth



not yet annotated



not yet annotated

YFL064C









biological_process unknown



molecular_function unknown



not yet annotated

YHL049C









biological_process unknown



molecular_function unknown



not yet annotated

YDR213W



UPC2





steroid metabolism



RNA polymerase II transcription factor



cellular_component unknown

YHL027W



RIM101





meiosis



transcription factor



not yet annotated

YEL053C



MAK10





not yet annotated



molecular_function unknown



not yet annotated

YBR027C









biological_process unknown



molecular_function unknown



not yet annotated

YBR166C



TYR1





not yet annotated



prephenate dehydrogenase (NADP+)



not yet annotated

YBR168W









biological_process unknown



molecular_function unknown



not yet annotated

YEL006W









biological_process unknown



molecular_function unknown



not yet annotated

YKL095W



YJU2





biological_process unknown



molecular_function unknown



not yet annotated

YDR090C









biological_process unknown



molecular_function unknown



not yet annotated

YDR524C



AGE1





ER to Golgi transport*



ARF GTPase activator



cellular_component unknown

YFR025C



HIS2





histidine biosynthesis



histidinol-phosphatase



cell

YNL094W









biological_process unknown



molecular_function unknown



not yet annotated

YGR041W



BUD9





polar budding



molecular_function unknown



cell


* : indicates that more than one annotation exists for the gene.



Figure 14.  Clustering data for YBR161W when exposed to limited glucose (SGD, 2001).

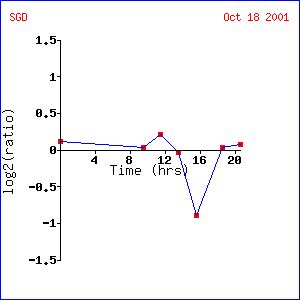

Figure 15.  Time response of YBR161W to diauxic shift (SGD, 2001).



          Here, YBR161W clustered with genes involved in meiosis, mRNA splicing, polar budding and RNA polymerase transcription factor.  Again, these clustering data indicate that YBR161W probably serves some function in the DNA replication process.



V.                Expression During Sporulation.



Scale : (fold repression/induction)

Click on a color strip to see data for that gene.

Up to 20 similar genes are shown, with a Pearson correlation of > 0.8 to the query gene

Orf



Gene





Process



Function



Component

YBR161W









biological_process unknown



molecular_function unknown



not yet annotated

YBR016W









biological_process unknown



molecular_function unknown



not yet annotated

YPL037C



EGD1





nascent polypeptide association



chaperone



nascent polypeptide-associated complex

YGR061C



ADE6





not yet annotated



phosphoribosylformylglycinamidine synthase



not yet annotated

YER020W



GPA2





pseudohyphal growth*



heterotrimeric G-protein GTPase



cellular_component unknown

YML115C



VAN1





not yet annotated



mannosyltransferase



not yet annotated

YHR195W



NVJ1





not yet annotated



molecular_function unknown



not yet annotated

YOL027C









biological_process unknown



molecular_function unknown



not yet annotated

YOL148C



SPT20





not yet annotated



not yet annotated



SAGA complex

YPR092W









biological_process unknown



molecular_function unknown



not yet annotated

YDR155C



CPR1





biological_process unknown



peptidylprolyl isomerase



cytoplasm

YNL133C



FYV6





biological_process unknown



molecular_function unknown



cellular_component unknown

YMR124W











biological_process unknown



molecular_function unknown



not yet annotated

YBR248C



HIS7





histidine biosynthesis



imidazoleglycerol-phosphate synthase



cell

YPL198W



RPL7B





protein biosynthesis



structural protein of ribosome



cytosolic large ribosomal (60S) subunit

YLR150W



STM1





biological_process unknown



molecular_function unknown



not yet annotated

YER102W



RPS8B





protein biosynthesis



structural protein of ribosome



cytosolic small ribosomal (40S) subunit

YHL020C



OPI1





phospholipid metabolism



not yet annotated



not yet annotated

YNL098C



RAS2





pseudohyphal growth*



RAS small monomeric GTPase



plasma membrane

YDR385W



EFT2





protein synthesis elongation



translation elongation factor



ribosome

YLR076C









biological_process unknown



molecular_function unknown



not yet annotated


* : indicates that more than one annotation exists for the gene.



Figure 16.  Clustering data for YBR161W during sporulation (SGD, 2001).





Figure 17.   Expression response of YBR161W to sporulation over time (SGD, 2001).



          Again, the annotated genes YBR161W clustered with all seem to pertain to DNA replication, for example, protein biosynthesis, protein synthesis elongation and translation elongation, as well as nascent polypeptide formation.  Also, for the first time, YBR161W has clustered with genes involved in cell wall production, i.e. phospholipid metabolism.  Recall that previous BLAST searches suggested YBR161W was a functional homolog to Sur1, a gene involved in the production of phospholipids in the cellular membrane.



Conclusions.

          While YBR161W consistently clustered with annotated genes involved in DNA replication for each experimental condition, it did not cluster with the same gene several times, nor with different genes but the same specific function.  While it may have coding similarities to the gene Sur1, it never clustered with that gene, indicating that they may not be regulated similarly.  To conclude with confidence that YBR161W is a functional homolog of any of these genes, more experimental evidence will be necessary.  Though it may be reasonable to assume that YBR161W plays a role in DNA replication, what that specific role may be has yet to be determined.



References.

1.     SGD, Expression Connection. 2001. < http://genome-www4.stanford.edu/cgi-bin/SGD/expression/expressionConnection.pl> Accessed 2001 Oct 16.



2.    Spellman P, Sherlock G, Zhang M, Vishwanath R, Anders K, Eisen M, Brown P, Botstein D, Futcher B.  1998.  Comprehensive identification of cell cycle-regulated genes of the yeast Saccharomyces cerevisiae by microarray hybridization.  Molecular Biology of the Cell 9(12). <http://www.molbiolcell.org/cgi/content/full/9/12/3273>  Accessed 2001 Oct 16.



3.    Zymo Research. 2001.  Alpha-factor mating pheromone. <http://www.zymor.com/y1001-frame.html>.  Accessed 2001 Oct 16.









Emily Oldham's Home Page

Genomics Home Page





Department of Biology, Davidson College, Davidson, NC 28036

Send comments, questions, and suggestions to: emoldham@davidson.edu
