Answer Key

Fall 1998 Biology 111 Exam #2 - Genetics, through linkage

There is no time limit on this test, though I have tried to design one that you should be able to complete within 2.5 hours, except for typing. There are four pages on this test. You are not allowed to use your notes, old tests, any electronic sources, any books, nor are you allowed to discuss the test with anyone until all exams are turned in at 10:30 am on Monday October 19. EXAMS ARE DUE AT CLASS TIME ON MONDAY OCTOBER 19. You may use a calculator and/or ruler. The answers to the questions must be typed on separate sheets of paper unless the question specifically says to write the answer in the space provided. If you do not write your answers on the appropriate pages, I may not find them unless you have indicated where the answers are.


Please do not write or type your name on any page other than this cover page. Staple all your pages (INCLUDING THE TEST PAGES) together when finished with the exam.

Name (please print):



Write out the full pledge and sign:




How long did this exam take you to complete (excluding typing)?



Lab Questions:

3 pts.
1) What is the total magnification of the image you are seeing when the light is set at 3.5, the condenser aperture is opened 88% of its full capacity, the ocular says 12.5X, the objective lens says 60X, you are using dark field illumination, and there are only 20 microliters of cells on the microscope slide?

3 pts.
2) I want to test the affects of ethanol on cells regenerating their flagella. What control, or controls, should I include in my experiment?
I should have two flasks. One would contain the normal cells plus a given volume of ethanol. The second flask should contain identical cells but I should add the same volume of water.

4 pts.
3) How can you tell a Chlamydomonas zygote from a Chlamydomonas gamete? Give me two ways you can tell, but indicate which one is the easier way.
A zygote will have four flagella, two eyespots, and two chloroplasts. The number of flagella is the easier way to tell zygotes from gametes.

Lecture Questions:

15 pts.


4) A man was married to a woman and together they had three children. Tragically, they were in a terrible car accident and everyone died except him. Years later, he remarried a second wife (2 ') and together they had three children.

a) What were the odds that he would have four boys and two girls in these two families?

b) What are the odds that he would have a girl and then two boys, followed by the same pattern of children again?

c) Is the disease a dominant, recessive or codominant one? Explain your answer to receive full credit.
This is recessive because in the first family, neither parent had the disease but one of the children did - it skipped the P generation.

d) What were the odds that child number 4 would inherit the disease?

e) What were the odds that child number 4 ' would inherit the disease?


6 pts.
5) Using the pedigree above, list the genotypes of all six children.
If H = wt and h = disease:
3 = Hh or HH
4 = hh
5 = Hh or HH
3' = hh
4' = Hh
5' = Hh

5 pts.
6) Draw a pedigree for a family that has two parents, three children, two of whom have Huntington's disease.

4 pts.
7) If a rare trait, thumb nails on the wrong side of your thumb, is on the same chromosome as blood type, explain how one child could wind up with her mother's blood type but her father's thumbs while another winds up with her mother's blood type and her mother's thumbs. In this situation, you do not need to worry about genotypes, or blood type alleles, though this is a test cross with the father being the homozygote. I want you to discuss in general terms two processes that can happen during gametogenesis that lead to this type of genetic variation.
One process is independent assortment. By this process, many gametes have different combinations of chromosomes/chromatids, as defined by centromeres (2 23 = about 8.4 million combinations). But this amount of diversity is not enough to explain all the diversity in the world. Added to this is recombination which will swap pieces of chromosome during prophase I. This increases the diversity of the chromosome/chromatid so that when centromeres and homologous chromosomes/chromatids separate, there is even more diversity than the number of combinations of centromeres.

9 pts.
8) You may have heard in the news that swarm of fruit flies was capture that had an unusual collection of traits. Two were mated and this couple produced 88 with pink eyes and 30 with pale yellow eyes.

a) Which allele is dominant?
pink (Y) is dominant

b) Describe what your answer means in both Mendelian and molecular terms.
In Mendelian terms, dominant means that this trait, or phenotype is visible but the other one (yellow) is not.
In molecular terms, a dominant trait makes a protein that is functional and overwhelms the recessive protein, which in this case may not be functional or may not be translated.

c) What were the genotypes of the parents in this mating?
Y = pink ;and y = yellow
Yy x Yy

10 pts.

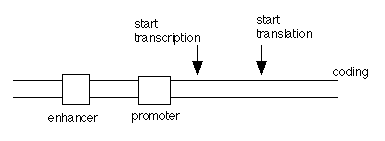

9) a) Draw schematic picture of a piece of DNA and indicate the location of the following terms on your diagram: coding strand; promoter; enhancer; start transcriptions site; start translation site.

b) Define the terms chromosome, chromatid, allele, locus, and gene. In order to get full credit, you must draw a picture to illustrate your complete understanding of these terms.

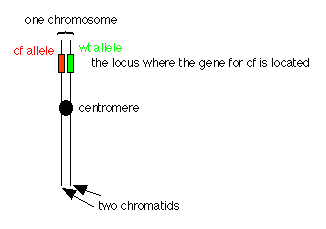

One chromosome after recombination during prophase I:

6 pts.
10) In the space provided, draw a picutre of one RNA nucleotide monophosphate. Properly label all the carbons in the sugar, but don't worry about drawing the base, just choose a base and write out the word in full to indicated which base you chose.


9 pts.
11) List and explain three types of mutations that might affect protein function besides those mutations that occur within the coding region.
1) A mutation in the promoter or enhancer could cause too much or too little expression which could result in a dominant or recessive mutation, respectively.
2) A mutation in the intron could result in incorrect splicing which could produce a frame shift and thus a non-functional protein.
3) A mutation in the signal sequence would cause the protein to go to the wrong subcellular location and thus it would not be in the right place to do its job.

4 pts.
12) What would your phenotype be if your karyotype were XY and your SRY gene had a point mutation that produced a silent mutation.
You would be a normal male.

8 pts.
13) A new drug is being tested on people with sickle cell and it is called hydroxyurea. Is this a cure for the disease? Explain your answer. Will those receiving hydroxyurea still be at risk of having children with SC?
It is not a cure because the person would still have the genetic cause of SC, thus if the drug is withdrawn, the disease would return. Hydroxyurea causes the fetal hemoglobin gene to become activated so that there is a functional copy of beta subunit available. Since this is a codominant disease, the symptoms are much milder, though some may still have some problems. Therefore, these patients would still be at risk of having childern with SC sine their original mutation is still in their DNA.

6 pts.
14) Describe the molecular defect in people with CF as determined by the experiment done by Sato and Sato.
This experiment demonstrated two things: 1) that there is a lack of response to cAMP in cf cells and 2) that there is a failure to secrete chloride ions when compared to wt cells.

8 pts.

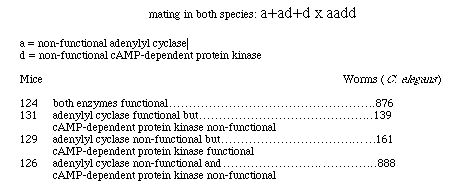

15) Indicated which genes are linked and which ones are unlinked. If any are linked, determine the genetic distance between the appropriate loci and which alleles were linked to each other in the mother:

Morgan nomenclature used here:

a) There is no linkage in mice, but there is linkage in worms.

b) 14.5 map units between the locus for adenylyl cyclase and cAMP-dependent protein kinase.

c) a+ is linked to d+ and a is linked to d in the mother.
