Results

A. Cloning of the pmh1Gene

I. Subcloning of the pmh1gene

     Before the pmh1 gene could be reconstructed into one continuous piece of DNA, six lambda genomic DNA samples  (prepared by Stephanie Moses, í97) containing the putative pmh1 gene were analyzed for their cloning suitability (Coble, 1998). After choosing the best sample, subcloning was carried out on the putative pmh1 gene. A 8.4 kb Sal I fragment (SF) was isolated and cloned by Allison Coble (í98) (Figure 6) and a 6.4 kb BamH I fragment (BF) was cloned by Dr. Virginia Armbrust (Figure 7).  These two fragments have an overlapping Sal I-BamH I region which is 0.8 kb. Lindsey Cohen (í99) then generated several smaller subclones in pSK-(From Stratagene) and pZero (from Invitrogen). A total of six subclones were generated, of which half contained inserts of various length derived from BF while the other half contained SF derived inserts. The main objective of generating these smaller subclones was to facilitate the creation of the final constructs since smaller sized fragments are much easier to manipulate and sequence.

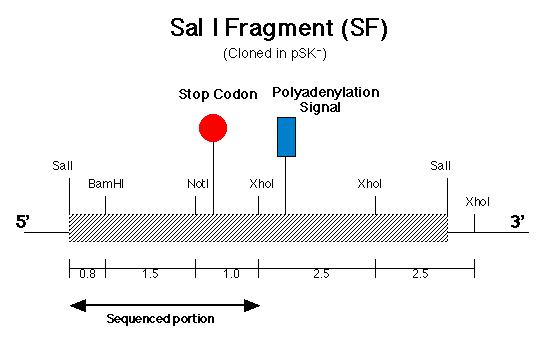

Figure 6 : Restriction map of the Sal I fragment (SF). This fragment is located downstream of BF, thus the stop codon and the polyadenylation signal is located within SF. The Xho I cut site at the 3'-end belongs to the pSK- polylinker region.




Figure 7: Restriction map of the BamHI fragment (BF). Since this is the 5'-end of the putative pmh1 gene, the start codon is located in this fragment. The EcoRI and Spe I cut site at the 5'-end belongs to the pZero polylinker region.


II. Analysis of the pmh1 gene prior to formation of final constructs

     The pArg7.8 insertion in the pmh1 gene prevented the 4.4 kb message from being detected by probe E (Figure 5). To rescue the phenotype through complementation, the pmh1 gene that codes for the 4.4 kb message must be reconstituted and transformed into the pmh1 mutant. Analysis of the sequenced putative pmh1 genomic DNA and pmh1 cDNA revealed that the largest open reading frame is 3.0 kb. Since the pArg7.8 insertion site is found within this open reading frame,  the mutation is localized within this coding region. The start codon on this open reading frame is located on the BamH I fragment (BF) cloned by Dr. Armbrust (Figure 7) while the stop codon is located on the Sal I fragment (SF) cloned by Allison Coble (Figure 6). In addition, it was found that the polyadenylation signal is located 1.0 kb downstream of the stop codon. This suggests that the 1.0 kb fragment between the stop codon and the polyadenylation signal is the 3í-untranslated region (Figure 6).

      Since the start and stop codons of the open reading frame are located on the BF and SF subclones respectively,  relevant portions of SF and BF that contain the open reading frame must be cut and spliced together in order to make final constructs of the putative pmh1 gene. Besides cloning the open reading frame, it is also crucial that the upstream promoter sequence and transcription initiation sites be included in the clones since these sequences facilitate transcription. In addition, the polyadenylation signal has to be present within the clone so that a poly-A-tail can be added to make a complete transcript.

III. Formation of final constructs

III-1) PCR of pmh1 SF
     The first part of my project in the building of construct A involved cloning the fragment derived from SF which contains the stop codon and the polyadenylation signal. To accomplish that, Polymerase Chain Reaction (PCR) was carried out to amplify that fragment. Since the location of the polyadenylation signal is known, PCR primers were made to flank the sequence immediately downstream of the polyadenylation signal and also at the 5í-end sequence immediately upstream of the BamH I restriction site (Figure 6). The 3í-end primer contained an additional 10 nucleotides which coded for a Kpn I restriction site. The Kpn I site is needed to generate sticky ends on the amplified DNA for cloning purposes. If  PCR using SF as the template were successful, we would obtain an amplified 2.8 kb DNA fragment spanning the 5í BamH I restriction site to the 3í Kpn I restriction site (due to the modified primer).

     Before the BamH I-Kpn I PCR product could be amplified, the template DNA was obtained. The template DNA came from SF cloned in the pSK- plasmid (pSK-/Sal I). Thus, cell cultures were grown and alkaline lysis mini-preps were conducted on pSK-/Sal I. Prior to running the PCR, I had to determine the the optimal amount of  pSK-/Sal I template DNA and Mg2+ needed in the reaction. The amount of Mg2+ used in PCR is crucial in obtaining an optimum yield. Thus, two sets of experiments were carried out. Figure 8 is a table that shows the volume of each reagent used in both sets of PCR experiments.

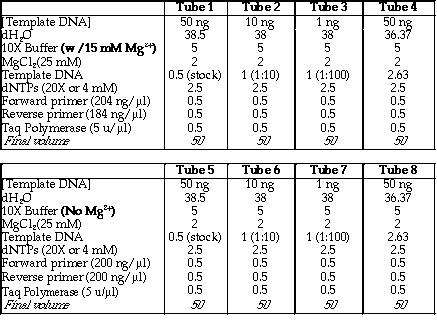

Figure 8: Reagents used in the two sets of PCR experiments with varying amounts of DNA template. Set 1 (tubes 1-4) contained a 10 X buffer with 15 mM Mg2+ while the set 2 contains 10 X buffer without Mg2+. Tubes 4 and 8 are duplicates from previous experiments which were successfully carried out by Lindsey Cohen but the results could not be reproduced. Thus, we wanted to find out whether her reagent mixture was capable of amplifying the DNA template (same template at different dilutions).



     In each experiment, the amount of template DNA used was the only variable. Tubes 1-4 contained the 10X PCR buffer with 15 mM Mg2+ while tubes 5-8 contained the 10X PCR buffer without Mg2+. The reagent mixture in tubes 4 and 8 were devised by Lindsey Cohen (í99) and she had successfully amplified the BamH I-Kpn I fragment under these conditions. However, she was unable to reproduce the results. Thus, we tried to carry out the experiment using the same reagent mixture hoping to reproducing her results. Under these conditions, PCR was performed on the eight tubes. A 0.7% agarose gel electrophoresis that was loaded with all the PCR samples from tubes 1-8 was used to detect the presence of any amplified DNA. Analysis of lane 3 in the gel revealed the presence of a 2.8 kb DNA fragment. The bright and thick band corresponded with the predicted PCR fragment (Figure 9).




Figure 9: 0.7% agarose gel electrophoresis of PCR samples. Each lane contained 5 ul of the PCR sample. Lanes 1-4 and 6-9 are PCR samples from their corresponding tubes. Lane 5 is the 1 kb ladder. Lane 3 contained the desired amplified DNA which is 2.8 kb in size.


     In order to ensure that the results were reproducible, PCR was repeated using the exact conditions from tube 3. All the reagents and volumes used in tube 3 remained constant. Five separate PCR reactions were completed and the contents from all the tubes were pooled. Another 0.7% agarose gel loaded with the PCR tube 3 product was run to verify the presence of amplified DNA. Analysis of the gel showed that PCR was successful and the desired PCR product using SF as template was amplified (Figure 10). Now that the presence of the desired PCR product had been verified, the PCR product was purified via electroelution (Figure 11).




Figure 10: 0.7% agarose gel electrophoresis of the PCR carried out using the tube 3 reagent mixture. Lane 1 is the 1 kb ladder, lane 2 contained 2 ul of the PCR product while lane 3 contained 4 ul of the PCR product. This gel contained the 2.8 kb fragment in both lanes 2 and 3 which indicated that PCR was successful.

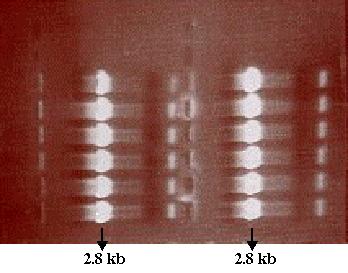

Figure 11: 0.7% agarose gel electrophoresis of the pooled PCR product. Each lane contained 15 ul of the amplified DNA using the SF as etmplate. Gel purification via electroeluction was then carried out on these amplified DNA fragments to isolate proteins and salts from the PCR mixture.


III-2) Cloning of PCR product in pSK-
     The next step in my project involved cloning the PCR product in pSK-. Since the PCR product is flanked by BamH I and Kpn I restriction sites, restriction digestions using both enzymes were performed. Previous experiments had shown that a double digestion could not be performed simultaneously because BamH I required a buffer with a high salt content (100 mM NaCl) while Kpn I required a buffer with low salt content (50 mM KCl). Thus, two separate digestions were conducted. Since PCR product would be cloned in pSK-, the pSK- plasmid was also digested with both restriction enzymes. The PCR product and pSK- were first digested with the low salt cutter Kpn I, "cleaned" , and then digested with the high salt cutter BamH I and then "cleaned" again. The DNA samples were digested in three duplicate sets before being pooled  for "cleaning". Quantification of the digested and cleaned DNA samples was carried out on a spectrophotometer and the absorbance and concentration for each sample were determined.

     After generating sticky ends on both the vector (pSK-) and insert (PCR product), two ligation reactions were performed. The first reaction had a 2:1 insert to vector ratio while the second set contained a 4:1 insert to vector ratio. After transformations, five colonies were detected on the plate with the 4:1 insert to vector ratio ligation and one colony growing on the 2:1 insert to vector ratio ligation. These colonies were picked and grown in LB-Amp media and alkaline lysis mini-preps were carried out to isolate the plasmids from the cells. To verify the presence of the PCR product in the pSK- vector, a Not I digestion was carried out. The digestion was run on a 0.7% agarose gel electrophoresis to verify the PCR product. Results obtained from the first gel, hinted that cells from tube 1 and tube 6 were successfully transformed. However, due to overloading of the samples, as well as the poor resolution of the 1 kb ladder,  the data was inconclusive (data not shown).  Another 0.7% agarose gel electrophoresis with just plasmid samples from tube 1 and tube 6 was run. Analysis of the gel revealed a 1.6 kb fragment and a 4.0 kb fragment (Figure 12). These two fragments proved that the ligation reaction had been successful. Thus, the PCR product was confirmed cloned within the pSK- plasmid. This newly cloned plasmid was labeled pF (Figure 13).




Figure 12: A 0.7% agarose gel electrophoresis of plasmid mini-prep samples of the ligation of the PCR product in pSK-. Lane 1 is the 1 kb ladder while lanes 2 and 3 are the plasmid samples obtained from tube 1 and tube 3 respectively. These two plasmid preps contained 5 ul of the digested plasmid DNA. Lane 4 contains the undigested pSK-. The 4.0 kb and 1.6 kb band on the gel indicated that transformation was successful and that the PCR product was cloned in pSK-.

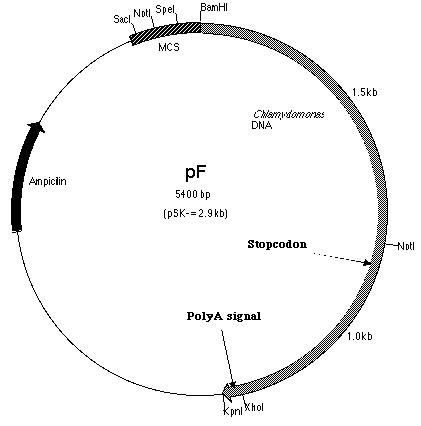

Figure 13: Restriction map of pF plasmid which contains the 3' half of the pmh1 gene. The stop codon and the polyadenylation signal for pmh1 are located on the plasmid.


III-3) Construction of pmh1 Construct A

     With the PCR product  successfully amplified and cloned (pF), construct A could now be made. Construct A is a fusion of the PCR product with pE. pE  (Figure 14) is one of the six subclones constructed by Lindsey Cohen (í99) and it contains a truncated BF insert cloned within the pSK- plasmid. The start codon is located within this truncated insert.  The PCR product on the other hand, is derived from SF. Thus, construct A (Figure 15) contains the putative pmh1 gene that includes the start and stop codons as well as the polyadenylation signal. It was hoped that the additional 0.1 kb fragment upstream of the start codon contained the promoter sequence.

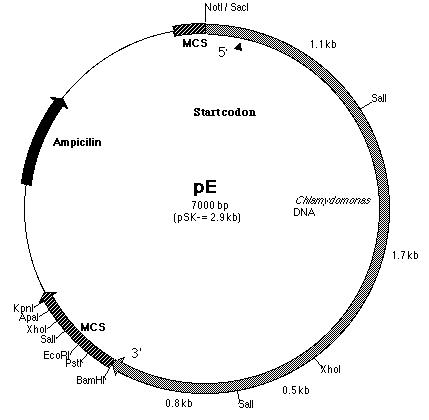

Figure 14: Restriction map of plasmid pE.

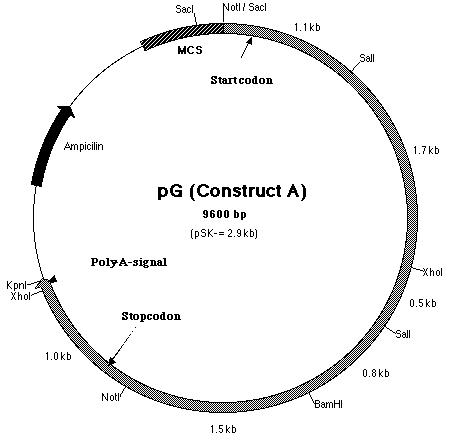

Figure 15: Restriction map of construct A which is also known as pG.


     Building construct A requires ligating the PCR product into pE. Both pE and the PCR product were digested with BamHI and Kpn I restriction enzymes to generate sticky ends. Next, a ligation reaction at a 8:1 insert to vector ratio was conducted to insert the PCR product into the 3í-end of the 3.8 kb insert in pE (Figure 14). Heat shock transformation of the ligation was then carried out and nine colonies were observed after overnight incubation. A Not I digestion was done on each of the nine plasmid mini-preps for the transformed colonies to verify the presence of the insert in pE. A 0.7% agarose gel electrophoresis loaded with the restriction digestions was ran to identify the plasmids. Analysis of the gel showed that plasmid samples 2, 5, 6 and 8 (lanes 3, 6, 10 and 12 on the gel) contained a 6.0 kb and  4.0 kb fragment. Both these fragments indicated that the ligation reaction was successful (Figure 16). The PCR product had been cloned into pE and construct A was ready. The newly formed construct A was labeled as pG (Figure 15).

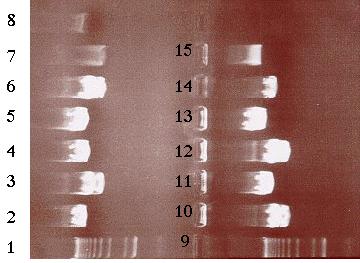

Figure 16:  A 0.7% agarose gel electrophoresis of the Not I digested plasmid samples from the ligation of the PCR product into pE. Starting from the base of the photo, on the left half of the gel, lane 1 is the 1 kb ladder, lanes 2-6 contained plasmid samples 1-5. Lane 7 contained Not I digested pSK- while lane 8 contained undigested pSK-. On the right half of the photo, lane 9 is the 1 kb ladder, lanes 10-13 contained plasmid samples 6-9. Lane 14 is the Not I digested pE while lane 15 is the undigested pE. The bands of 6.0 kb and 4.0 kb on the gel (lanes 3, 6, 10 and 12) indicated that transformation was successful and construct A was cloned.


III-4) Construction of pmh1 Construct B
     Work was also done to build construct B (Figure 17). Construct B is construct A with an additional 2.5 kb fragment ligated to the 5í-end of the insert. If construct A failed to work due to the absence of the promoter region, it is believed that the additional 2.5 kb fragment which lies upstream of the start codon should contain the promoter sequence and possibly the enhancer region as well. In order to create construct B, plasmid pD (Figure 18) was used. Plasmid pD is a pZero plasmid that contains a 6.3 kb insert. This insert, like pE, is derived from BF. However, it contains the additional 2.5 kb Not I-Eco RI fragment upstream of the pE insert. To build construct B, Kpn I and BamH I restriction enzymes were used to generate sticky ends from both pD and the PCR product. Both the insert (PCR product) and the plasmid vector (pD) were ligated together to produce construct B. Although the PCR product had already been cloned in pF, pF was not used because if the PCR product was digested with BamH I and Kpn I, two fragments of almost equal sizes would be generated. The digestion would generate 2.8-2.9 kb fragments derived from the PCR product and the pSK- plasmid vector (Figure 13). Hence, the PCR product could not be resolved from the pSK- plasmid vector in an agarose gel electrophoresis.

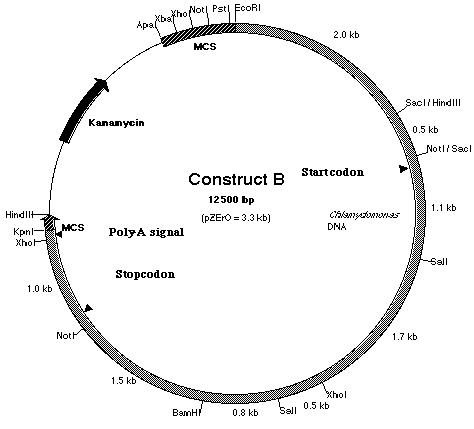

Figure 17: Restriction map of Construct B which is still incomplete.

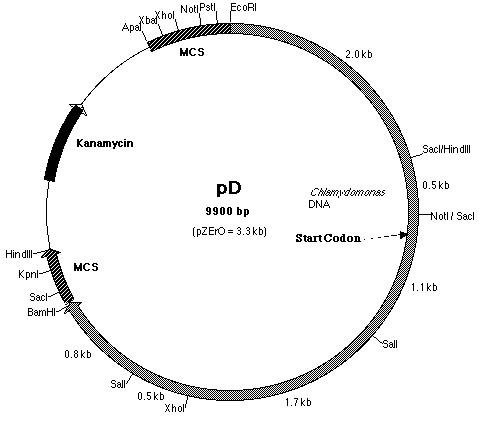

Figure 18: Restriction map of pD plasmid which contained the 5' half of the pmh1 gene. The start codon is located on pD.



     Many complications surfaced in the process of cloning construct B. First, contamination in the T4 DNA ligase led to the growth of foreign colonies on the transformation plates. On a casual glance, the morphology of the colonies resembled the expected transformed E. coli colonies. However, careful observation revealed that the foreign colonies grew slower and also appeared to be more opaque than E. Coli colonies. In addition, no plasmid DNA was detected in the gel electrophoresis of the plasmid mini-preps (data not shown). Since contamination of the T4 DNA ligase is extremely rare, we spent several weeks trying to determine the source of the contamination.

     Once the contamination problems were eliminated,  several transformations of construct B were conducted using various competent cells. The first few transformations were done using  JM109 competent cells from Stratagene. We then switched over to MAX efficiency STBL2 competent cells from GibcoBRL. Finally, we decided to use an ultracompetent cell , Epicurian Coli XL10-Gold from Stratagene. The results obtained from using all three competent cells were identical and the transformation failed to produce the desired clone. In all three transformations, a single smeared band of 6.0 kb was detected on the gel (Figure 19). This single band is smaller than pD (9.9 kb). It is possible that construct B is highly unstable and that recombination might have occurred after transformation. In addition, the insert in construct B is three times the size of the plasmid and the total construct is around 13.0 kb in size. Thus, the size of constuct B could have reduced the cloning efficiency and probably resulted in other complications.

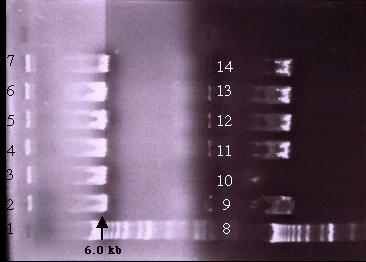

Figure 19: A 0.5% agarose gel electrophoresis of the Xho I digested plasmid mini-prep samples. On both half of the gels, lane 1 and 8 is the 1 kb ladder while lanes 2-7 and 9-14 are the plasmid samples. The bands indicated the presence of a DNA fragment roughly 6.0 kb in size in each lane. This is smaller than pD. If transformation was successful, three bands of 5.1 kb, 4.0 kb and 3.3 kb would be detected. Failure of transformation could be due to the size of the construct.




B. Transformation of Construct A in pmh1cells

     With the first construct ready, transformation of construct A into the mutant pmh1 cells was carried out. If construct A complemented the mutant phenotype, then flagellar agglutination should occur and the pmh1 cells should mate. For transformation of C. reinhardtii, a plasmid, pMN56 (Dutcher et al., 1998) that contains the nit1 selectable marker was used to identify cells that had been successfully transformed. nit1 is a nitrogen reductase gene that allows cells to survive in a ammonium deficient medium. The strains of C. reinhardtii used, including pmh1, are nit1- and thus they are unable to survive in a selective medium. However, cells that took up the nit1 selectable marker would be capable of growing on a selective medium. Cells that took up nit1 were presumed to contain construct A as well because the concentration of construct A was five fold that of nit1 and the probability of construct A being co-transformed with nit1 is high. The transformants would then be screened for complementation by allowing the cells to mate with the mt+ cells (pmh1 is mt-). If mating occurred, then the transformation and the complementation experiments were successful. Transformations were carried out using standard protocol described under the materials and methods section.

     During transformation, autolysin was added to help break down cell walls so that the targeted vector can enter the cell and transformation can occur. Autolysin was not used for the first several transformation attempts. This was due to observations under the light microscope that suggested pmh1 lacked cell walls (Russo, personal communication). Although several variables such as polyethlyene glycol concentrations, nit1 concentrations, duration of vortexing cells with glass beads and the amount of beads used were altered, no colonies grew on the NH4+ free plate. This indicated failure of transformation.

     Autolysin was then prepared and used in subsequent transformations. Once again, no colonies were observed. Failure of transformation could be due to the excessive heat generated by the construction work in the Dana science building. Another transformation  was then carried out with autolysin and the plates were incubated in a 22 degrees Celcius growth chamber. Transformation with strain A54 was also carried out simultaneously to determine toxicity of the autolysin. Since strain A54 is capable of surviving and growing in a nitrogen-free medium, it should grow on the plates unless any of the reagents used in the transformation were toxic. Results showed that the A54 grew well in the nitrogen-free media. In addition, green colonies were spotted growing on the experimental plates.  These colonies were individually selected and streaked on NH4+ free plates using sterilized toothpicks. Roughly 150 colonies were selected and transferred using this method. Once the colonies were allowed to grow for a week, it was apparent that they were contaminated with a foreign organism (Figure 20). The foreign organism appeared to be bacterial (Wessner, personal communication) and the Chlamydomonas cells seemed to grow on the surface of  the contaminant (Figure 21).

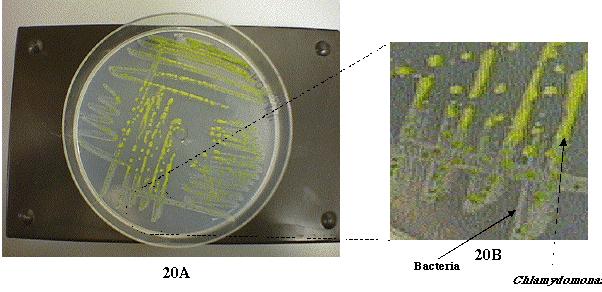

Figure 20: The colonies streaked out on the NH4+-free TAP (Tris-Alkaline-Phosphate) plates were growing on bacterial contaminants (20A). 20B is a close up look of the plate on the left. The green streaks are the Chlamydomonas cells while the bacterial contaminants looked white.




Figure 21: Chlamydomonas colonies that were streaked out on a NH4+-free plate. These streaked patches contained a mixture of Chlamydomonas cells and the bacterial contaminants.



     A decision was made to try and isolate the transformed colonies from the contaminants. Under the dissecting microscope, individual cells in a colony were teased away from the contaminants and they were streaked out on fresh NH4+-free plates. After several attempts, it was concluded that the cells could not be separated from the bacterial contaminants and the contaminants usually overwhelmed the plate before the cells had a chance to grow (Figure 22).





Figure 22: The individual Chlamydomonas cell that was isolated from a colony and then plated on a fresh NH4+-free TAP plate are being overwhelmed by the bacterial colony. All that is seen here is a white lawn of bacterial contaminants.


    In a separate experiment, some of the mixture of cells were streaked out on plates that were coated with amphicilin and kanamycin which killed the bacterial contaminants. Results indicated that at high antibiotic concentrations (100X), the bacterial contaminants were absent. However, no Chlamydomonas colonies grew on those plates either. This suggested the "transformed" cells were absorbing the NH4+ waste secreted by the bacteria. Thus, without the bacteria, the Chalamydomonas cells could not survive in the NH4+-free environment. To answer that question, an experiment was devised and performed to determine whether the Chlamydomonas cells were really transformed. The data showed that pmh1 alone could not survive on a nitrogen-free media. However, if the contaminants were mixed with pmh1, the cells grew well (Figure 23). This experiment proved that transformation never occurred and the colonies that were "transformed" were actually dependent on the contaminant for survival and growth.





Figure 23: Experimental plate to determine whether the Chlamydomonas cells were transformed (23A). pmh1 cells were unable to grow alone on the NH4+-free TAP (23B). However, in the presence of the bacterial contaminants, abundant growth was observed (23C). This indicated that the pmh1 cells were surviving on a NH4+ source secreted by the bacterial contaminants.



C. pmh1 Sequence Analysis Via MacDNAsis

     Since the pmh1 gene had been sequenced, sequence analysis of the pmh1 genomic DNA, cDNA and amino acid sequence was carried out via MacDNAsis. First, the genomic DNA was scanned for several restriction enzyme cut sites. This analysis enabled us to verify the cut sites obtained from the restriction mapping that was done prior to sequencing. Results indicate that all the cut sites were correctly predicted via restriction mapping. However, an additional Sal I site was found in between the BamH I and Not I restriction site in SF (Figure 6). The presence of the Sal I site is most probably due to a sequencing error.  Using the pmh1 cDNA, we also identified the correct open reading frame for the pmh1 gene. The start codon was determined to several bases downstream of the Not I/Sac I restriction site (Figure 7) while the stop codon was located downstream of the Not I site in SF (Figure 6). The pmh1 amino acid sequence was used to predict transmembrane domains via the Kyte and Doolittle hydrophobicity plot. A total of ten hydrophobic transmembrane region as well as a phosphorylation domain were detected as is typical of P-type ATPases (Russo, personal communication; Figure 24).

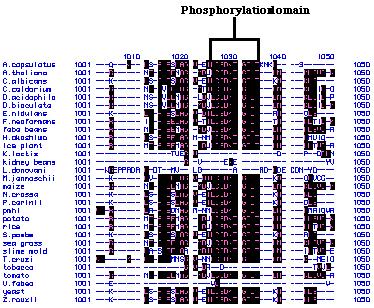

Figure 24: Multiple sequence alignment of peptide sequences from pmh1 and twenty nine other organisms using the Higgins and Sharp model (Higgins et al. 1988). This is one of the several highly conserved regions detected among the compared organisms. The conserved phosphorylation domain is indicated on the figure. The aspartic acid residue (D) within this domain is the phosphorylation site.


     A Genbank search was then carried out to to identify other proteins that displayed a strong sequence homology with the pmh1 sequence. The protein sequences derived from twenty nine other organisms were extracted and then a multiple sequence alignment was carried out . This multiple sequence alignment not only identified all the highly conserved regions in pmh1, it also allowed us to create a phylogenetic tree based on the relational similarities of the sequences being compared (Figure 25). Further analysis of the multiple sequence alignment and the phylogenetic tree will be described in the discussion section of this paper.

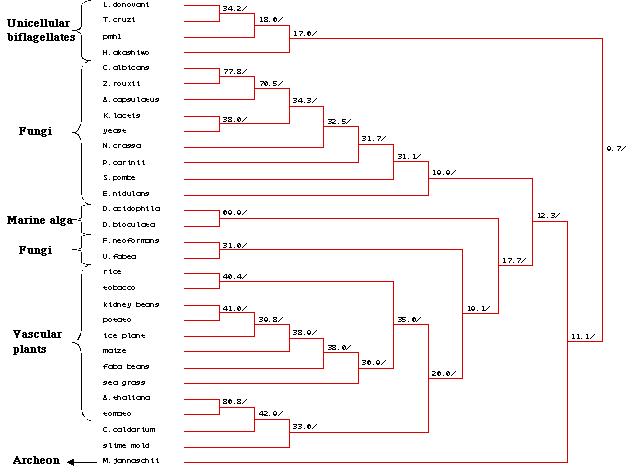

Figure 25: Phylogenetic tree created by MacDNAsis for pmh1 and twenty nine other organisms using the Higgins and Sharp model (Higgins et al., 1988).
