The pET Expression System
Expression systems are designed to produce many copies of a desired protein within a host cell. In order to accomplish this, an expression vector is inserted into a host cell. This vector contains all of the genetic coding necessary to produce the protein, including a promoter appropriate to the host cell, a sequence which terminates transcription, and a sequence which codes for ribosome binding (Purves et al., 2001). One expression system was developed in 1986 by W. F. Studier and B. A. Moffatt, who created an RNA polymerase expression system which was highly selective for bacteriophage T7 RNA polymerase. The initial system involved two different methods of maintaining T7 RNA polymerase into the cell - in one method, a lambda bacteriophage was used to insert the gene which codes for T7 RNA polymerase, and in the other, the gene for T7 RNA polymerase was inserted into the host chromosome (Studier et al, 1986). This expression system has become known as the pET Expression System, and is now widely used because of its ability to mass-produce proteins, the specificity involved in the T7 promoter which only binds T7 RNA polymerase, and also the design of the system which allows for the easy manipulation of how much of the desired protein is expressed and when that expression occurs. (Unger, 1997; Novagen, 2002-2003).
Producing Proteins with the pET Expression System
Designing the pET Plasmid:
A pET vector is a bacterial plasmid designed to enable the quick production of a large quantity of any desired protein when activated. This plasmid (pictured below) contains several important elements - a lacI gene which codes for the lac repressor protein, a T7 promoter which is specific to only T7 RNA polymerase (not bacterial RNA polymerase) and also does not occur anywhere in the prokaryotic genome, a lac operator which can block transcription, a polylinker, an f1 origin of replication (so that a single-stranded plasmid can be produced when co-infected with M13 helper phage), an ampicillin resistance gene, and a ColE1 origin of replication (Blaber, 1998).
To start the process, your favorite gene (YFG) is cloned into a pET plasmid at the polylinker site. Both the T7 promoter and the lac operator are located 5' to YFG. When the T7 RNA polymerase is present and the lac operator is not repressed, the transcription of YFG proceeds rapidly. Because T7 is a viral promoter, it transcribes rapidly and profusely for as long as the T7 RNA polymerase is present (Campbell, 2003). The expression of your favorite protein (YFP) increases rapidly as the amount of mRNA transcribed from YFG increases. Within a few hours, YFP is one of the most prevalent components of the cell. (Unger, 1997).
Figure 1: The pET Vector. This plasmid contains a drug resistant marker for ampicillin resistance (green), the lacI gene (blue), the T7 transcription promoter (red), the lac operator region (pale green) 3' to the T7 promoter, and a polylinker region (black). Also, there are two origins of replication - one is the f1 origin which enables the production of a single stranded vector under appropriate conditions, and the other is the conventional origin of replication. This image was used with permission from Dr. Michael Blaber, of Florida State University. The original reference can be found here.
Introducing T7 RNA Polymerase to the Host Cell:
One of the most important parts of the pET Expression System involves the fact that YFG is not transcribed unless the T7 RNA polymerase is present. Prokaryotic cells do not produce this type of RNA, and therefore the T7 RNA polymerase must be added. Usually, the host cell for this expression system is a bacteria which has been genetically engineered to incorporate the gene for T7 RNA polymerase, the lac promoter and the lac operator in it's genome. When lactose or a molecule similar to lactose is present inside the cell, transcription of the T7 RNA polymerase is activated.. Typically, the host cell used is E. coli strain BL(DE3) (Blaber, 1998). The diagram below shows the genome of the host cell.

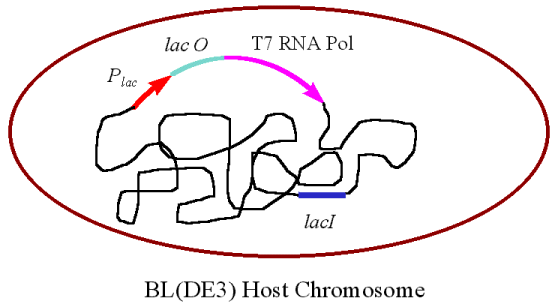

Figure 2: The Host Chromosome. The lac promoter is in red, the lac operator is green, the gene which encodes the T7 RNA polymerase is pink, and the lac inducer is blue. The host cell genome is represented by the black line, and the brown line represents the cell membrane. This image was used with permission from Dr. Michael Blaber, of Florida State University. The original reference can be found here.
T7 RNA polymerase can be introduced to the cell through methods other than incorporation a gene in the host chromosome. It can be introduced through infection of the original host cell with lambda CE6 (Novagen 2003-2003).
Controlling the pET Expression System
Control of the pET expression system is accomplished through the lac promoter and operator. Before YFG can be transcribed, T7 polymerase must be present. The gene on the host cell chromosome usually has an inducible promoter which is activated by IPTG. This molecule, IPTG, displaces the repressor from the lac operator. Since there are lac operators on both the gene encoding T7 polymerase and YFG, IPTG activates both genes (Science Advisory Board, 2003; Campbell, 2003). Therefore, when IPTG is added to the cell, the T7 polymerase is expressed, and quickly begins to transcribe YFG which is then translated as YFP.
IPTG works to displace a lac repressor since IPTG is an analogue of lactose (Blaber, 1998). The lac genes express enzymes which are involved in the breaking down of lactose, and therefore, the presence of lactose (or it's analogue) would trigger the initiation of transcription of lac genes.
